Chamber Filter Press
Chamber Filter Press

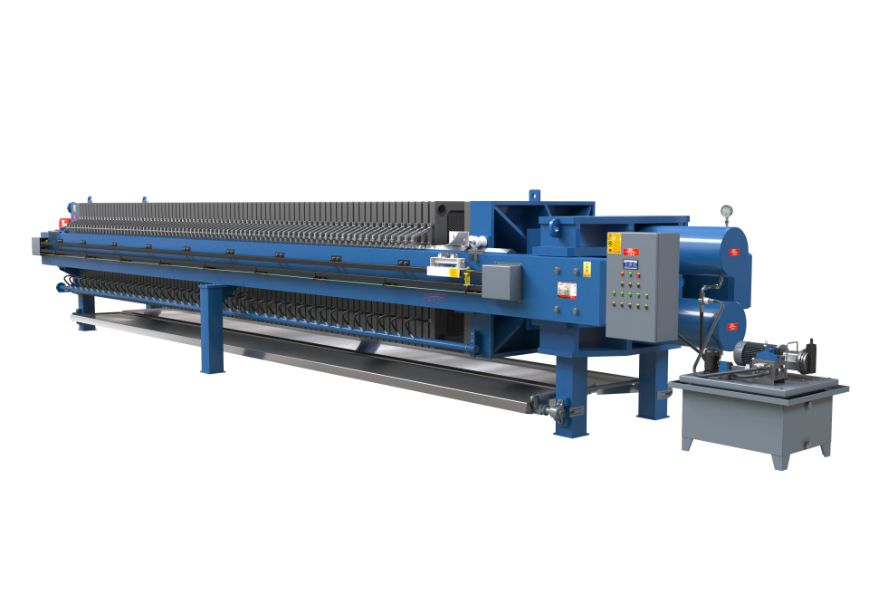

The auto chamber filter press is a solid-liquid separation filter press widely used in various industries. It is commonly used in wastewater treatment plants, mining operations, chemical industries and food processing plants. It forces the liquid partially through the filter cloth while retaining the solid particles in the chamber.
The auto chamber filter press is a solid-liquid separation filter press widely used in various industries. It is commonly used in wastewater treatment plants, mining operations, chemical industries and food processing plants. It forces the liquid partially through the filter cloth while retaining the solid particles in the chamber.
The basic structure of an auto chamber filter press consists of a series of filter plates with filter cloths that alternate with solid plates. The filter plates of our products are usually made of materials such as polypropylene, cast iron or stainless steel, depending on the application and the nature of the filter material. Each plate has a central chamber or chambers in which solids accumulate during the filtration process.
Individually adapted to meet different process requirements and specific customer requirements
High degree of configurability and maximum flexibility
Compact and robust design for perfectly reliable filtering operations
High level of safety thanks to the latest safety technology
High price/performance ratio
The filter cloth acts as a medium to pass liquids through while retaining solids. The result is the formation of a filter cake and collection of the filtrate within the chamber, resulting in effective solid-liquid separation.
Filtration: The chamber filter press applies pressure to the slurry either hydraulically or mechanically. This pressure forces the liquid portion of the slurry through the filter cloth while retaining the solid particles within the chamber.
Cake Formation: As the liquid passes through the filter cloth, a layer of solid particles called cake forms on the surface of the cloth within each chamber.
Filtrate Collection: The liquid portion of the slurry, called the filtrate, passes through the filter cloth and is collected in a drainage system or collection channel.
Filter Cloth Cleaning: Over time, the filter cloth may become clogged with accumulated solids, which can reduce filtration efficiency. Regular cleaning or replacement of the filter cloth is critical to maintaining the performance of the chamber filter press.
* Bright is specially equipped with inspection room for filter plates of which application is from different industry. We conduct various tests to determine shock resistance, elongation strength, elongation at break, curving strength, distortion temperature, and more. This allows us to optimize the recipe for the filter plate to meet the specific requirements of each client and their unique environment and slurry. The technical index for this membrane plate includes a tensile strength of up to 56mpa, elongation at break of 800%, machining accuracy (depth of parallelism) of ≤0.157mm, planeness of 0.012/100mm2, and a dimension tolerance of plate thickness of ±0.20mm. The machining accuracy class is G5. During testing, the membrane plate was subjected to 2.1 times the stated pressure. The diaphragm plate had no leakage or deflection when tested at 2.1 times the specified pressure.
We can produce recessed plate and membrane plate ranging from 500mm to 2600mm and accept customization.
FILTER PRESS APPLICATION
Wastewater Treatment: Chamber filter presses are popular in municipal and industrial wastewater treatment plants. This application helps reduce the amount of sludge that needs to be treated and results in cleaner water.
Mining and Minerals: In the mining industry, chamber filter presses are commonly used to dewater mining slurries and recover valuable minerals. They can separate solids from mining tailings, concentrate slurries and other mining process streams. By removing water from the slurry, chamber filter presses facilitate solid waste treatment and disposal. It is also capable of recovering water and valuable minerals.
Chemical industry: Chamber filter presses help improve product quality, reduce waste and increase process efficiency in chemical manufacturing.
Food and Beverage: The food and beverage industry utilizes chamber filter presses for a variety of purposes. In addition, chamber filter presses help remove solids, particles and impurities, ensuring product clarity and quality.
