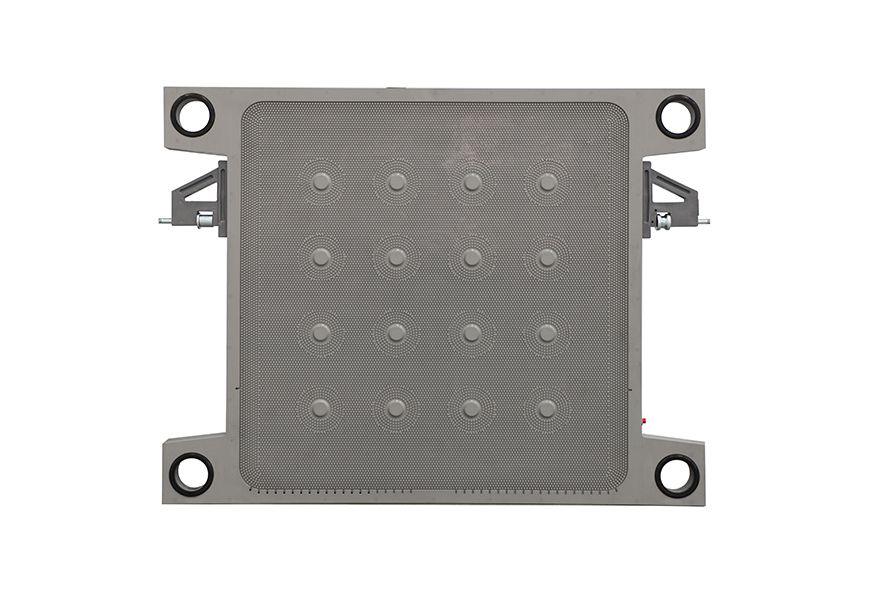

Single Chamber with Compresser Air Drying Membrane Plate

1, Good sealing.

2, Lower moisture content, Dry air more efficient, No air leakage (Copper concentrate, Gold concentrate and other Non-ferrous concentrate cake moisture content is less than 10%, in other industries moisture reduced by 10%-15% at the same conditions compare with other filter plate), Cake full automatic fall off, reduce comprehensive operating costs.

3, Feed evenly, there will be no uneven cake thickness.

4, Washing and dry air fully and thoroughly, can save water and air 30%-50%.

5, Core blow pipe and feed pipe clean without residual slurry, core blow valve service life extend more than double.

6, Compared with the same type of filter plate filter area increased by 13%.

7, Plate size incl. 1500model, 2000Model
