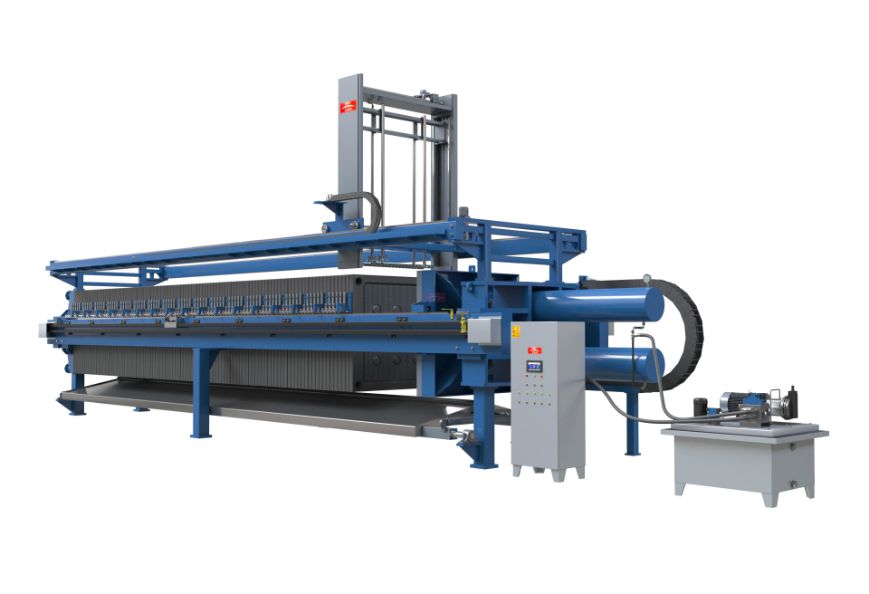

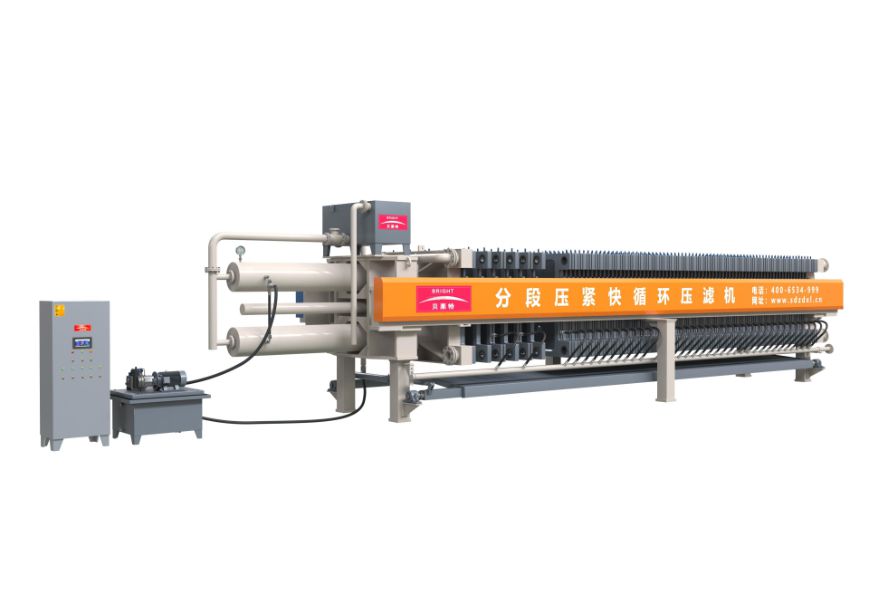

Membrane Filter Press
Membrane Filter Press
There are over 200 models of filter presses, including Manual type, Mechanical type, Hydraulic type, Automatically programmed controlled type, Two-time quick cake discharge type, High-efficient Energy-saving quick open type, High-pressure type, Quick open and close type.
There are over 200 models of filter presses, including Manual type, Mechanical type, Hydraulic type, Automatically programmed controlled type, Two-time quick cake discharge type, High-efficient Energy-saving quick open type, High-pressure type, Quick open and close type.
The equipment has a capacity range of 100L to 20000L per cycle and includes various functions such as auto cloth washing, auto cake discharge, auto. drip tray, auto pneumatic valve, auto slurry feeding, cake drying, core blowing, cake squeezing, plate shaking, and cloth shaking etc..
Advantage:
● The safety factor of the frame can be up to 1.5 times more than the normal operating factor. Q355B carbon steel is the main material used for the frame. The main beam adopts a square box structure to solve issues such as side bending and sagging. This structure has a safety factor that is up to 2.0 times higher than a normal structure.
● The filter plate's special design ensures a longer service life and reduces water and compressor air consumption.

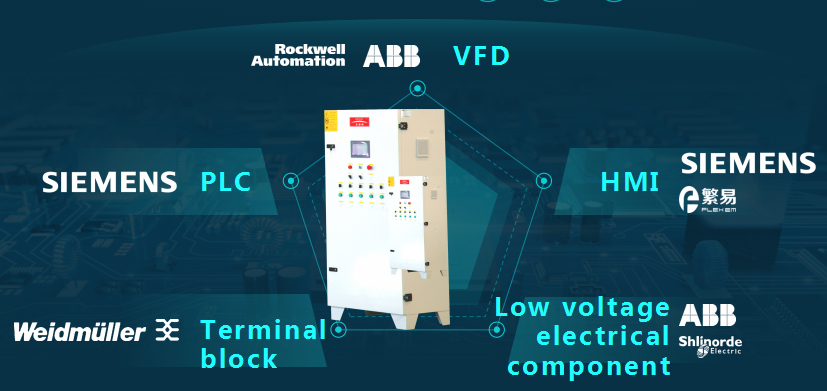

● The electrical panel components use internationally recognized brands such as Siemens, ABB, and Schneider.
● Our advanced processing equipment and professional team ensure the high quality of our products. With tens of thousands of engineering cases of experience, we can quickly choose the best filter press to achieve the best input-output ratio. Our fully automatic control system can also help you save on labor costs.

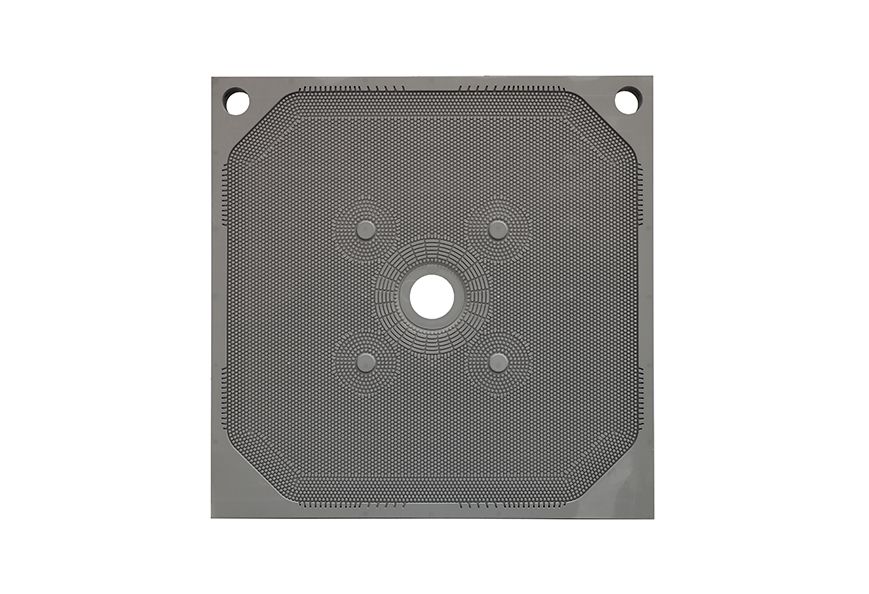

Filter plate introduction
Advanced filtration technology has been incorporated into the design of our filter plates. By combining the layout of pips and stay bosses, channel design, and the opening angle of drainage holes, we have enabled faster slurry filling with less impact on the filter plates and better slurry uniform distribution. This leads to quicker filtration with a thorough wash and a longer service life of the filter plate.
The filter plate material is a high-quality TPE elastomer combined with PP from Sinopec. It is both flexible like rubber and tenacious and rigid. The filter plate is shaped using a 4600-ton molding press and sized using press equipment. Finally, the filter plates are machined, drilled, or trimmed using a CNC milling machine. The planeness of the filter plate is below 25 μm, ensuring a tight seal to prevent slurry leakage.
Compared to other companies, Bright filter plate has a filtration speed that is 20% faster. Additionally, the density, strength, anti-fatigue, and anti-aging properties have all been improved twofold.
The feed pressure can reach up to 10 bars, while still being able to resist temperatures of up to 100℃.The filter plate has a curving strength of over 260 bars and features high temperature resistance, a good seal, excellent anti-corrosion properties, a shorter filtration cycle time, good washing results, and lower moisture content in the cake.

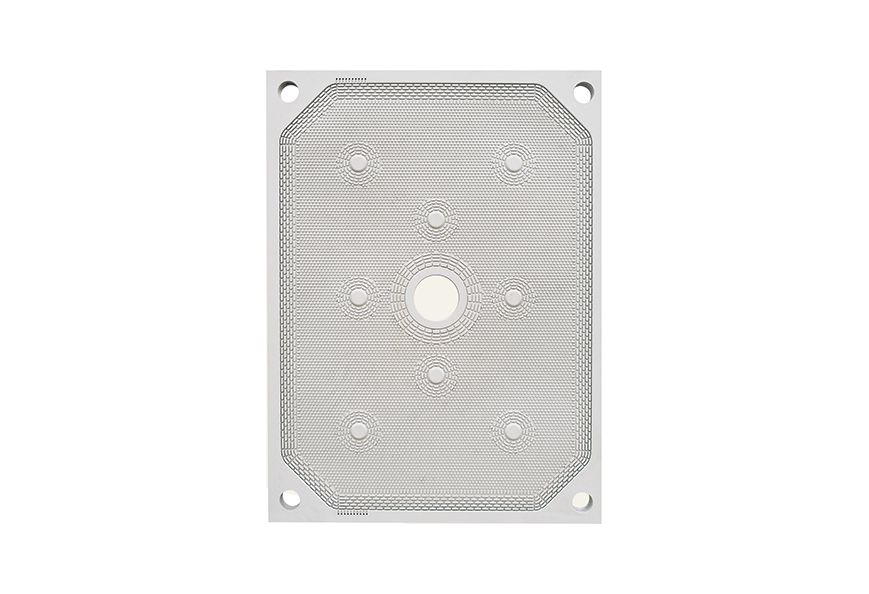

PP membrane plate
The filter plate is the central component of a filter press, and its quality is crucial to production efficiency. Our filter plates match the world's standards in terms of structural design, manufacturing processes, and product quality. We were also honored with the Shandong Patent Award for our patents. In 2006, we were granted utility model patents with numbers ZL 2005 2 0084475.X and ZL 2005 2 0084472.6.
The membrane plate comprises a core plate body and a membrane piece. The production of these components is crucial and directly affects the filter plate's service life. To guarantee optimal performance and a long service life, the membrane piece material is exclusively sourced from reputable suppliers, including PP and TPE. Bright membrane plates are welded using specially designed hot melting welding equipment. They can now compete with Lenser or JVK in terms of all performance indexes, even with membrane inflation pressure up to 40 bar. These plates feature high density, high machining accuracy, a rounded and smooth appearance, high anti-curving strength, high tensile strength, high shock resistance, high temperature resistance, and are anti-corrosive, odorless and colorless.
* Bright is specially equipped with inspection room for filter plates of which application is from different industry. We conduct various tests to determine shock resistance, elongation strength, elongation at break, curving strength, distortion temperature, and more. This allows us to optimize the recipe for the filter plate to meet the specific requirements of each client and their unique environment and slurry. The technical index for this membrane plate includes a tensile strength of up to 56mpa, elongation at break of 800%, machining accuracy (depth of parallelism) of ≤0.157mm, planeness of 0.012/100mm2, and a dimension tolerance of plate thickness of ±0.20mm. The machining accuracy class is G5. During testing, the membrane plate was subjected to 2.1 times the stated pressure. The diaphragm plate had no leakage or deflection when tested at 2.1 times the specified pressure.
We can produce recessed plate and membrane plate ranging from 500mm to 2600mm and accept customization.

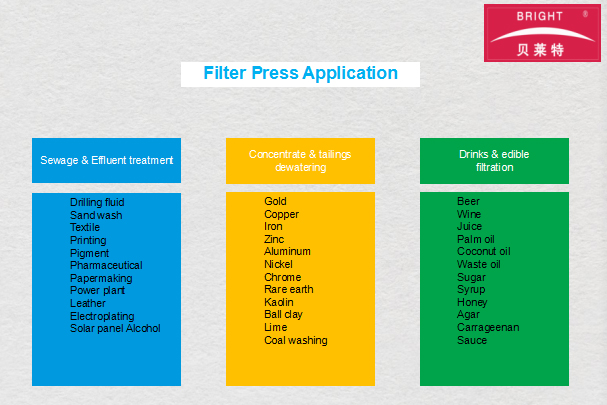

FILTER PRESS APPLICATION
