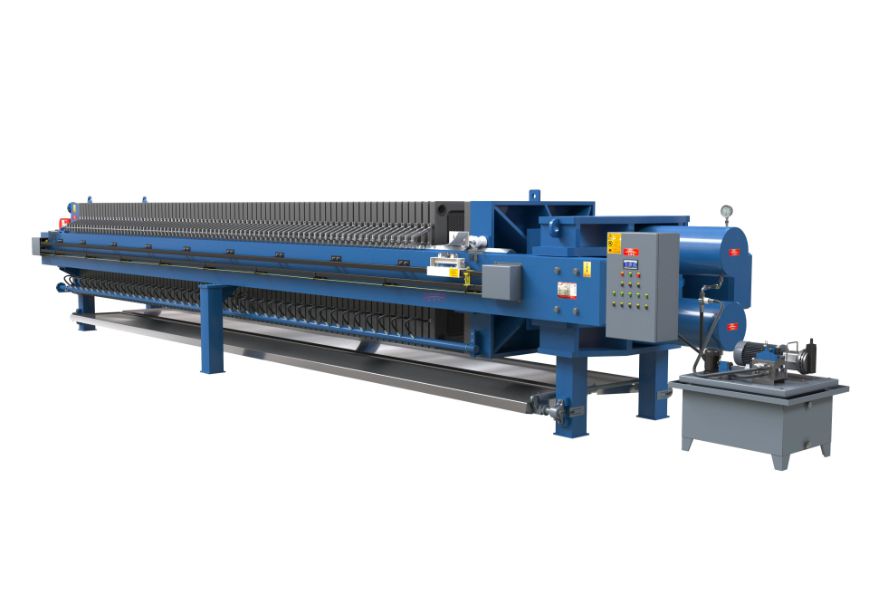

The structure of chamber filter press is similar to that of plate and frame filter press, but the filter plate of chamber filter press is thicker than that of plate and frame filter press, thus it can withstand higher feed pressure, and chamber filter press consists of two identical filter plates.
Recessed plate filter press is an intermittently operated filtration equipment for solid-liquid separation of various suspensions with good separation effect. This type of filter press utilises plates with grooves in them. The structure of chamber filter press is similar to that of plate and frame filter press, but the filter plate of chamber filter press is thicker than that of plate and frame filter press, thus it can withstand higher feed pressure, and chamber filter press consists of two identical filter plates.
When the two filter plates are pressurised to form a filter chamber, the feed hole is located in the centre of the plate, which is usually used for materials with large particles, such as sewage treatment, mineral processing, coal washing, etc.
● The safety factor of the frame can be up to 1.5 times more than the normal operating factor. Q355B carbon steel is the main material used for the frame. The main beam adopts a square box structure to solve issues such as side bending and sagging. This structure has a safety factor that is up to 2.0 times higher than a normal structure.
● The filter plate's special design ensures a longer service life and reduces water and compressor air consumption.
● The electrical panel components use internationally recognized brands such as Siemens, ABB, and Schneider.
● Our advanced processing equipment and professional team ensure the high quality of our products. With tens of thousands of engineering cases of experience, we can quickly choose the best filter press to achieve the best input-output ratio. Our fully automatic control system can also help you save on labor costs.
Feeding through the centre hole allows for faster and more uniform filling of the chamber and reduces the risk of damage to the filter plate due to uneven pressure.
The concave chamber design allows for higher feed pressures and prevents the filter plate from bending under high pressure.
When using concave plates, the filter cake is easier to dislodge. When using a plate and frame filter press, the filter cake may not come off as quickly and may require more operations to remove.
The machine is designed and manufactured with the integration of machine, electricity and liquid, with reasonable structure, simple and reliable operation, and convenient maintenance.
The material is fed into the filter press through a feed pump, the solids are evenly distributed within the chamber, the solids begin to accumulate on the filter cloth and eventually form a cake on the cloth.
The filtrate normally flows out of the filter plates through the angle ports and into the manifold. When the correct valve in the manifold is opened, the filtrate leaves the filter press through the outlet.
As the pressure in the filter press increases, solids accumulate in the filter chamber until the cake is completely filled. When the chamber is full of cake, the fill cycle is complete. The filter press is then switched on, the filter press plates are moved and the filter cake falls into the filter cake hopper.
Sewage & Efluent treatmert
Drilling fluid
Sandwash
Textile
Pinting
Pigment
Phammaceutical
Papermaking
Pover plart
Leather
Electroplating
Solar panel Alcohol
Concentrate & tailings dewatering
Gold
Copper
Iron
Zinc
Aluminum
Nickel
Chrome
Rare earth
Kadin
Ball clay
Lime
Coal washingDrinks & edible fitration
Beer
Wine
Juice
Palm oil
Coconut oil
Wvaste oil
Sugar
Symp
Honey
Agar
caraceenan
Sauce

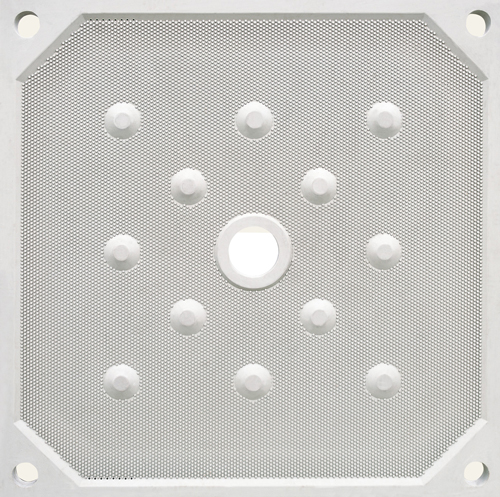

Advanced filtration technology has been incorporated into the design of our filter plates. By combining the layout of pips and stay bosses, channel design, and the opening angle of drainage holes, we have enabled faster slurry filling with less impact on the filter plates and better slurry uniform distribution. This leads to quicker filtration with a thorough wash and a longer service life of the filter plate.
The filter plate material is a high-quality TPE elastomer combined with PP from Sinopec. It is both flexible like rubber and tenacious and rigid. The filter plate is shaped using a 4600-ton molding press and sized using press equipment. Finally, the filter plates are machined, drilled, or trimmed using a CNC milling machine. The planeness of the filter plate is below 25 μm, ensuring a tight seal to prevent slurry leakage.
Compared to other companies, Bright filter plate has a filtration speed that is 20% faster. Additionally, the density, strength, anti-fatigue, and anti-aging properties have all been improved twofold.
The feed pressure can reach up to 10 bars, while still being able to resist temperatures of up to 100℃.The filter plate has a curving strength of over 260 bars and features high temperature resistance, a good seal, excellent anti-corrosion properties, a shorter filtration cycle time, good washing results, and lower moisture content in the cake.
PP membrane plate
The filter plate is the central component of a filter press, and its quality is crucial to production efficiency. Our filter plates match the world's standards in terms of structural design, manufacturing processes, and product quality. We were also honored with the Shandong Patent Award for our patents. In 2006, we were granted utility model patents with numbers ZL 2005 2 0084475.X and ZL 2005 2 0084472.6.

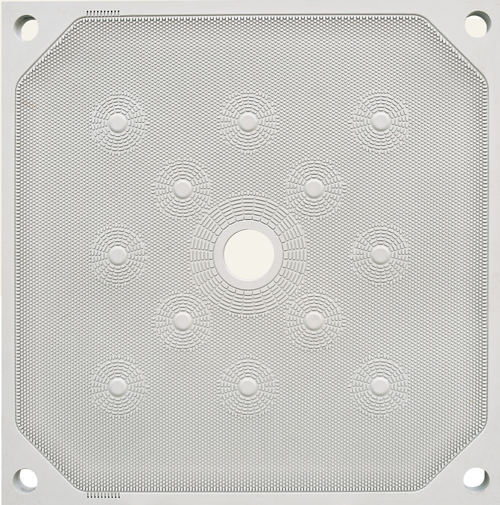

The membrane plate comprises a core plate body and a membrane piece. The production of these components is crucial and directly affects the filter plate's service life. To guarantee optimal performance and a long service life, the membrane piece material is exclusively sourced from reputable suppliers, including PP and TPE. Bright membrane plates are welded using specially designed hot melting welding equipment. They can now compete with Lenser or JVK in terms of all performance indexes, even with membrane inflation pressure up to 40 bar. These plates feature high density, high machining accuracy, a rounded and smooth appearance, high anti-curving strength, high tensile strength, high shock resistance, high temperature resistance, and are anti-corrosive, odorless and colorless.
