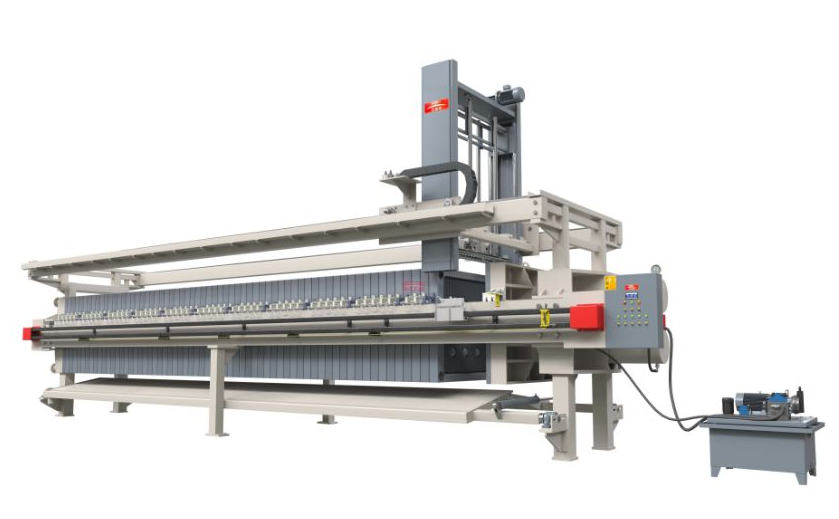

What is a filter press?
A filter press is a device used for liquid/solid separation. Specifically, a filter press utilizes pressure filtration to separate liquids from solids, where the slurry is pumped into the filter press and dewatered under pressure. Basically, each filter press The design of a filter press is based on the amount and type of slurry that needs to be dewatered.
It is used for wastewater treatment in a variety of industries and applications. Filter presses work by separating solids from liquids and removing impurities and suspended solids from industrial wastewater. This allows plant managers to easily treat and dispose of waste while returning clean water to their systems.
Filter presses separate liquids from solids. Specifically, filter presses use pressure filtration to separate liquids and solids through a filter media. The slurry is then pumped into the filter press and then dewatered under pressure.
What are the four main components of a filter press?
Frame
Filter plates
Manifold (pipes and valves)
Filter cloth (This is the key to optimizing filter press operation.)
How does a filter press work?
A filter press works by the slurry being pumped into the machine so that the solids are evenly distributed throughout the fill cycle. The solids build up on the filter cloth, forming a cake; the filtrate flows out of the filter plate through the corner opening into the manifold, producing clean filtered water.
A filter press is a method of pressure filtration. As the pressure from the filter press feed pump increases, solids build up in the chamber until the chamber is completely filled with solids. This forms the filter cake. When the filter plates are full, the cake is released and the cycle is complete. In addition, many higher capacity filter presses use fast acting automatic plate shifters to speed up the cycle time.BRIGHT has specifically designed its filter presses for fully automated, 24-hour operation in harsh environments, such as mines or chemical manufacturing plants used for wastewater treatment.
Filtration mode: according to the way of filtrate outflow, it is divided into open-flow filtration and dark-flow filtration. Open-flow filtration, each filter plate below the liquid outlet hole is equipped with a water nozzle, the filtrate intuitively from the water nozzle outflow. Dark flow filtration, there is a liquid outlet channel hole under each filter plate, the liquid outlet holes of several filter plates are connected to form a liquid outlet channel, and the liquid is discharged from the pipeline connected to the liquid outlet hole under the thrust plate.
Washing method: When the filter cake needs to be washed, sometimes there is one-way washing and two-way washing, dark flow one-way washing and two-way washing.
Once the filtration process is complete, the filter press is opened and the solid cake is removed. The filter cloth can be cleaned and the filter plates adjusted for the next cycle. Proper maintenance and operation of the filter press is essential to ensure continued performance, minimize downtime and achieve optimum filtration results. The entire filter press operation is highly efficient and is widely used in industries such as wastewater treatment, mining and food processing, where solid-liquid separation is a key part of the operation.
What is the purpose of a filter press?
Food and beverage processing
Chemical manufacturing
Mining
Power Generation
Polymerization
Asphalt and cement production
Steel mills
Municipal plants
Scope of customized service
1. Automatic Hydraulic, Manual Hydraulic Filter press: Size from 10 m2 to 1000 m2
2. Membrane plate, Recessed plate: Size from 470mm*470mm to 2000mm*2000mm
3. Filter press for chemical industry including: Pigment, Food additives, Titanium dioxide, Precipitate calcium carbonate, Carrageenan, Pharmaceutical Etc.
4. Filter press for mining beneficiation including: Iron ore, Gold ore, Silver ore, Zinc ore, Cooper ore, Phosphate ore, Coal ore. Quartz, Kaolin Etc.
5. Filter press for sewage sludge treatment including: Chemical sewage, Municipal sewage, pharmaceutical sewage Etc.
6. Work temperature up to 95℃, Work pressure up to 30bar.
7. Commissioning, Maintenance, Updated Service for various filter presses
Contact the Experts at BRIGHT
If you are interested in learning more about how to customize a filter press for your specific application, contact BRIGHT today.
is your trusted partner for fully engineered filtration solutions. We offer end-to-end solutions, from filter media to industry-leading filtration equipment, to spare parts and accessories, to field service and in-house lab service.BRIGHT draws on deep industry experience and application knowledge to deliver the right engineered filtration solution to meet your needs. We look forward to working with your team.
